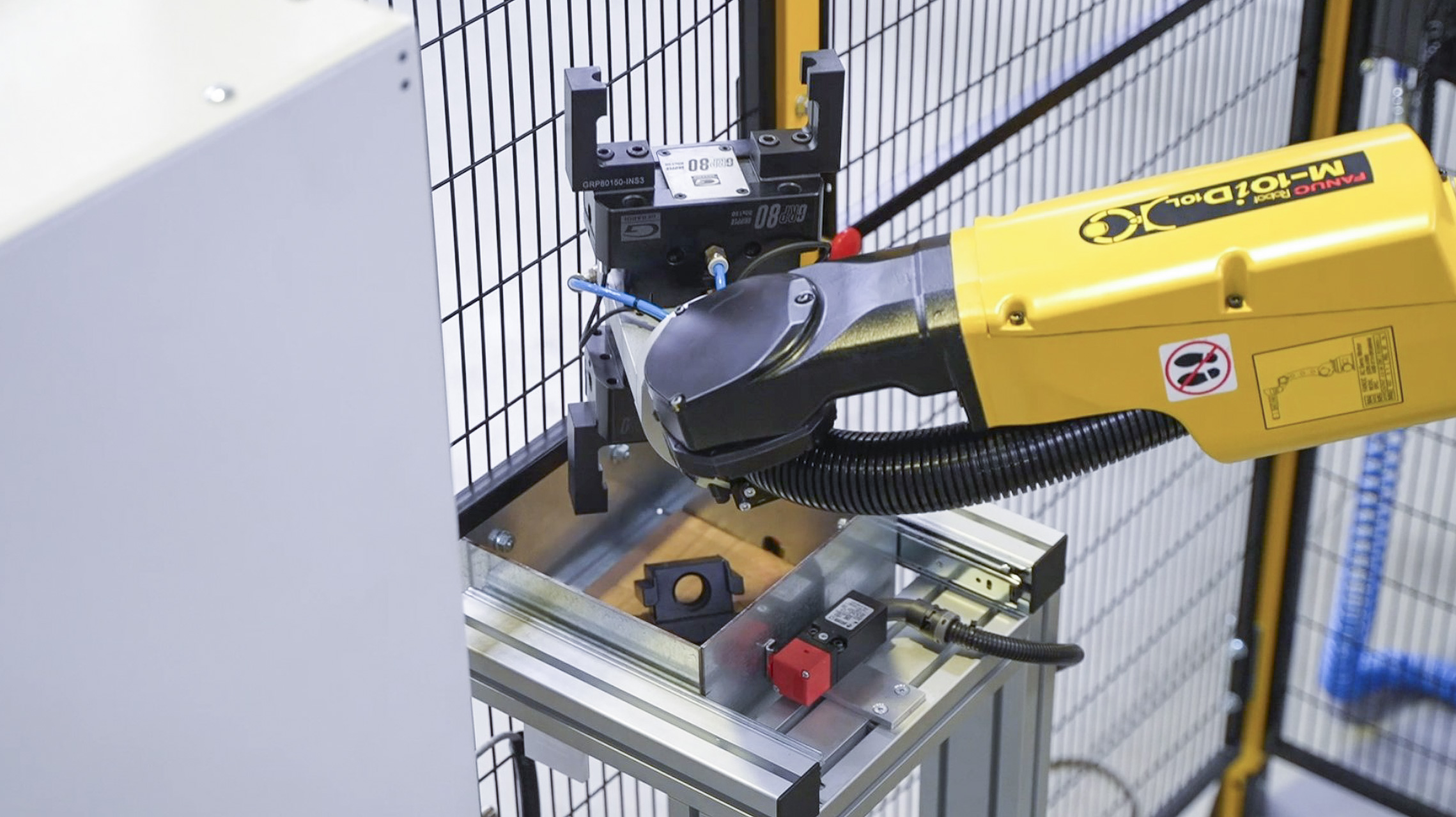

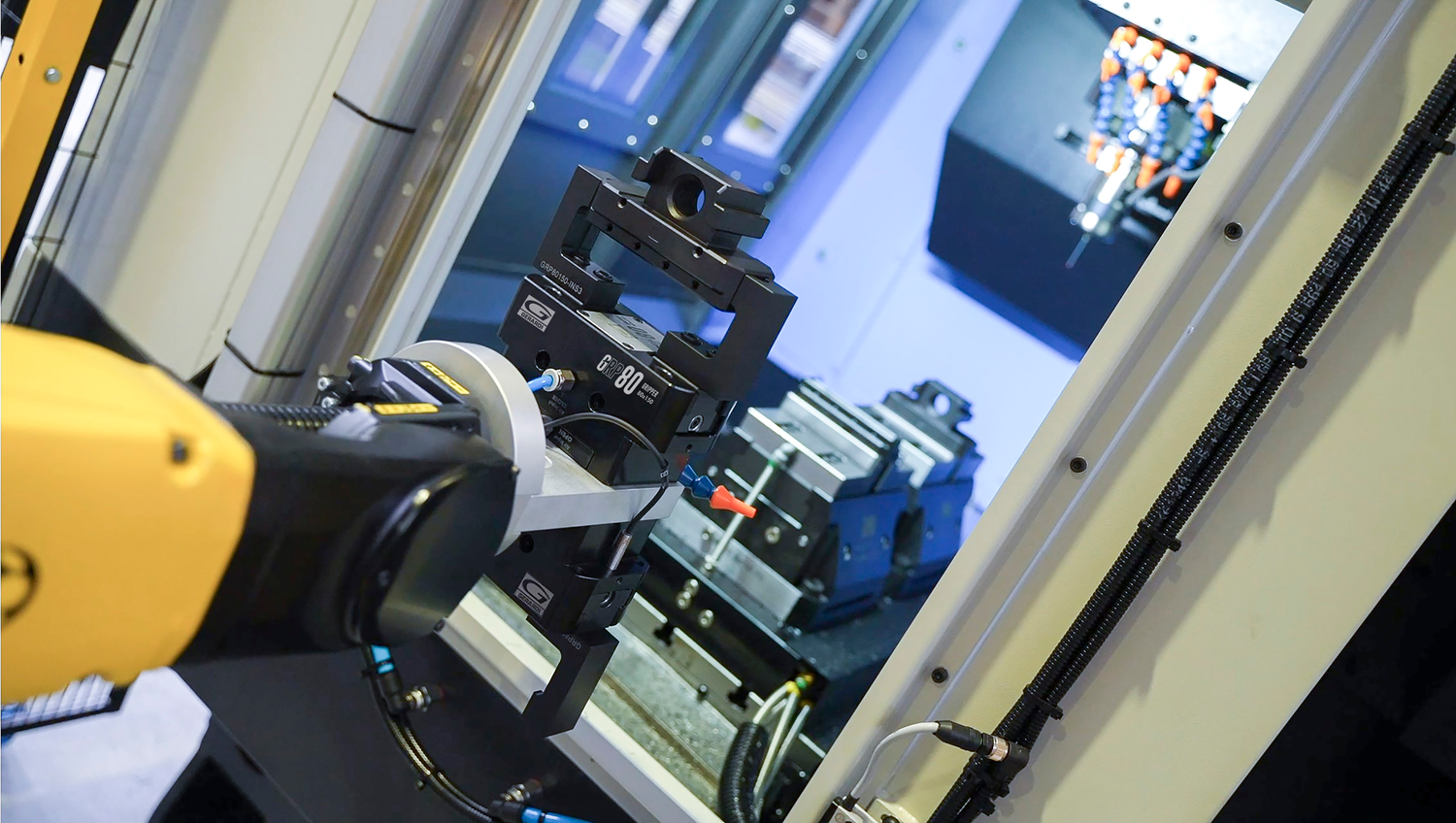

Jaws For Robots

GRIPPERS
High Performances & Accuracy

 5 year warranty

Very high quality standards and long-lasting warranty. Metal chips protection and less maintenance, high strength and maximum workpiece holding precision for a stable clamping of light and heavy workpieces.

The optimized and innovative design with reduced overall dimensions and internal components grant higher reliability, easier mounting and less maintenance than conventional models already on the market.The high resistance aluminum body with anodic oxidation treatment his light and compact and has a high resistance to wear.

Custom made jaws are available.

  • PRODUCTION OPTIMIZATION
  • ANODIZED ALUMINUM JAWS
  • MADE IN ITALY
01-FEAT-zero-point-solid-elastic-collet
02-FEAT-zero-point-positioning-keys
03-FEAT-zero-point-clamping-force-increase
04-FEAT-zero-point-pull-stud

FEATURES

The multiple Zero Point system (Art.664-665) allows, thanks to the solid integral elastic collet, a lateral translation, that solves problems of centre distances and variations caused by the temperature. The central reference point remains steady accuracy within microns.

The Positioning Keys on the Zero Point Body allow the correct and safe positioning of the fixture or the workpiece you need to machine.

The DOUBLE EFFECT, possible with the single zero point units (hermetic), allows to get clamping results much higher than the normal thanks to the non-return valve. When the double effect is operated the air adds a pneumatic clamping power which supports and increases the normal clamping through springs.

The Pull Studs ensure a correct alignement and positioning of the fixtures and can be also assembled directly on the workpiece.
They can be male or female according to the application needs

Solid vise base. Every sliding and coupling surface is ground. Centesimal tollerances are guaranteed by checking cycles with CNC measuring machine. The perfect alignment with the machine axis is given by longitudinal and cross keyways (16H7) or positioning holes (Ø16 mm F7), upon specific request, on the vise base. Of course this allows minimum of set up times and gang operations.

ICON_precision_accuracy

ACCURACY

±0,005mm

ICON_steel_hardened

HARDENED

58±2
