Vises & Vise Towers

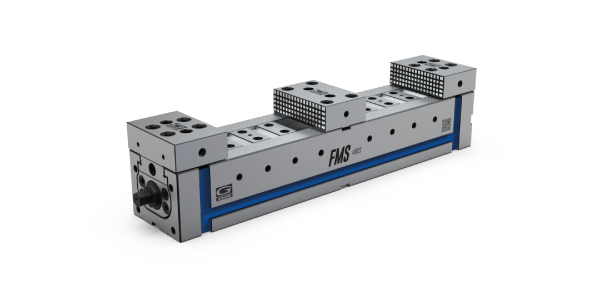

FMS
A FLEXIBLE MODULAR SYSTEM WITH HUNDREADS OF JAWS AVAILABLE!

 5 year warranty

Born to be dedicated to machining centres, FMS series of vises allow workholding with perfect alignment in a space saving design, extremenly high wear resistence, with deflection reduced 2 times in respect to the STD modular vises (base thickness doubled)

The feature (Pathented) which identifies this line of vises consists in the  possibility to trasform each single vise (1 piece clamping) in a self-centering vise with possibility to block from outside to inside and viceversa and in a double vise through the simple substitution of the jaws on the universal vise body base.

  • 3 POSITIONS FOR THE FIXED JAW
  • OUTSIDE TO INSIDE CLAMPING AND VICEVERSA
  • VERTICALLY, HORIZONTALLY AND SIDEWAY VISE POSITIONING
  • SIDE TO SIDE, BACK TO BACK AND BACK TO SIDE VISE POSITIONING
  • UNLIMITED SPECIAL JAWS
  • SIMPLE AND PRECISE EXCHANGE OF JAWS
  • EXTENSION ELEMENT FOR EXTRA-LONG PIECES
01-FEAT-fms-vises-double-thread-spindle-and-guided-slides
02-FEAT-fms-vises-positioning-keyways
03-FEAT-fms-vises-highest-rigidity​

FEATURES

Completely protected main spindle with left and right thread and slides long as the vise base with multiple movable jaw positions

Longitudinal and cross keyways both on the base bottom surface
for horizontal positioning and on the side for vertical positioning

Higher vise base in order to guarantee a better rigidity. Bending reduced two times with respect to the Standard modular vises. Available solid vise towers.

ICON_precision_accuracy

ACCURACY

±0,005mm

ICON_steel_hardened

HARDENED

58±2

FEATURES

Possibility to trasform each single vise in a selfcentering vise with possibility to block from outside to inside and viceversa and in a double vise through the simple substitution of the jaws on the universal vise body base

Pull down jaw plates with comb system (quick hand change)

It allows the first workpiece loaded to be clamped lightly while the second workpiece is being loaded. Such device is useful especially with the vise vertically positioned.

04-FEAT-fms-vises-3-vises-in-one
06-FEAT-fms-vises-third-hand-service-DETAIL

How to use it

Some clamping applications

There is More

Watch Video

Documents

All the information you need
