DRIVEN TOOLS
2 year warranty
Driven tools for CNC turning centres allows milling, drilling and tapping operations on the lathes without additional parts handling. Also in this case Gerardi can suplly a wide range of types in order to equip the CNC lathes and turrets of the most popular builders on the market with an unbeatable price/quality ratio.
VDI ToolHolders consist of a serrated shaft that is inserted into an opening on the face of the turret. The toolholder is locked in place by a mating part with teeth located inside the turret… when an Allen wrench is used to tighten the locking screw, situated on the turret face, the mechanism activates and holds the toolholder firmly in position. The rotation of the toolholder is prevented by a pin located on the mounting surface of the turret. Unlike BMT toolholders, VDI toolholders can be mounted either on the outer circumference of the turret or on its face, depending on the turret configuration of the machine in use.
The BMT, or “Base Mounted Turret”, is a popular choice when seeking a more rigid configuration. The BMT holder is securely fastened to the face of the turret with 4 socket head cap screws, and is positioned and further secured with locating keys present on the turret face. Thanks to these keys, it is not necessary to indicate the toolholder to straighten it, which is often required with VDI toolholders. Additionally, the simple design of the BMT holder’s mounting configuration makes it an excellent choice for creating custom holders for special circumstances – something that would be very difficult with VDI toolholders.
- MAX RIGIDITY AND CORROSION RESISTANT
- 360° BODY ROTATION
- INTERNAL COOLANT UP TO 70BAR
DRIVEN TOOLS
FEATURES
Specially treated corrosion resistant steel body
Preloaded angular contact ball bearings precision and long life lubrication.
Gleason spiral bevel gears with completely ground involute form
The shafts are case-hardened and tempered, with subsequent finishing
of diameters and shoulders.
Their construction is designed to handle high loads and dynamic stresses,
and they are suitable for bidirectional rotation
SPEED
24.000 Rpm
INTERNAL COOLANT
Up to 100BAR
FEATURES
All the driven tools, with the exception of those with adjustable angle, can be supplied with double or multiple output even of the same dimension. Multiple outputs can be opposite or with the same direction.
The spindle wrench facilitates tool changes by securely locking the spindle,
enabling the operator to work with both hands and enhancing ergonomics,
safety, and efficiency
Enables internal refrigeration even when it would otherwise not be possible, ensuring zero refrigerant liquid.
The spindle-side non-contact labyrinth seal enables high-speed operation
without overheating during intensive cycles, contamination is expelled
by centrifugal forces guaranting a perfect drain.
Best Selling

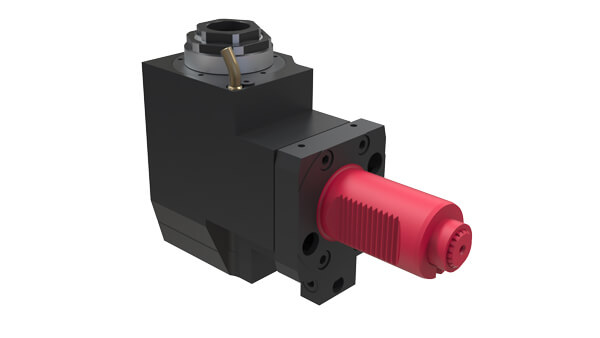

VDI
The tool axis is offset from the turret drive axis
BIGLIA
L’asse delle uscite è perpendicolare rispetto all’asse del gambo del motorizzato che si inserisce nella torretta
MOTORIZED SLOTTER
It Creates grooves and internal cavities directly on the Lathe
VDI
The tool axis is parallel to the turret or spindle axis
NAKAMURA
The output shaft is perpendicular to the shaft of the motorized unit that fits into the turret
TSUGAMI
L’asse delle uscite è perpendicolare rispetto all’asse del gambo del motorizzato che si inserisce nella torretta
