IRREVERSIBLE SYSTEM FOR 5TH AXIS CNC
5 year warranty

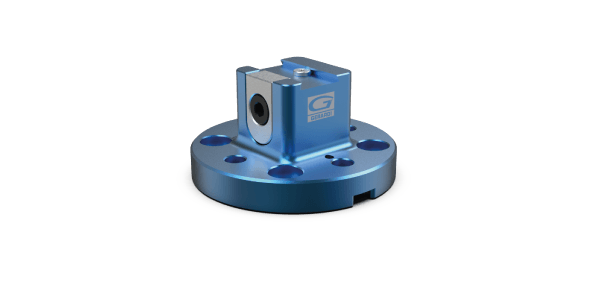

Thanks to its versatility and shape, which gurantees an exceptional rigidity, our Irreversible DOVE TAIL system also ensures an optimisation of set-up and machining times.
Each part can be clamped through Dove Tail system simply machining in advance the lower side, by creating a 3mm high template and a 60° angle. Dove Tale system is an irreversible interlocking system which guarantees an exceptional rigidity of the clamping during all types of machining.
The pyramidal riser allows the simultaneous mounting of 4 Dove tail systems inclined at 30° thus increasing the working space, widening the machining possibilities and also reducing the dead times.
- HIGHEST RIGIDITY
- IRON CAST BODY
- JAWS OPENING Ø160 – Ø430
- MADE IN ITALY
FEATURES
Each part can be clamped through Dove Tail system simply machining in advance the lower side, by creating a 3mm high template and a 60° angle. Dove Tale system is an irreversible interlocking system which guarantees an exceptional rigidity of the clamping during all types of machining.
The workpiece is clamped by means of the dovetail, which exploits the leverage effect generated by the main screw ensures effective closure
The fastest and most reliable clamping system for your 5-axis machining centre. Thanks to its versatility and conformation it offers optimisation of tooling and machining

ACCURACY
±0,005mm

IRON CAST BODY GJL
250
FEATURES
With the dovetail system Gerardi the rigidity of the workpiece grip is always ensured even during the most complicated machining operations!
The pyramidal riser allows the simultaneous mounting of 4 Dove tail systems inclined at 30° thus increasing the working space, widening the machining possibilities and also reducing the dead times
The Dove Tail System is obviously compatible with the widest range of Gerardi fixtures in especially with Zero Point systems and with Quick Change plates and it is possible to use it on the worldwide most popular Machine Centers

How to use it
Some clamping applications
2005
ZERO POINT SYSTEM
Zero Point introduces the concept of instant positioning and anchoring: an ideal solution for quick, precise and safe clamping of fixtures on machine tool pallets.
2015
GRIPMATIC VISES
GripMatic is ideal for 5-axis machining centers. Thanks to its compatibility and control via CNC, it can fully automate part clamping processes.
2020
GRIPPER ROBOT
Gerardi Grippers represent another significant step forward on the journey into the world of automation and robotics, easy to use and with a wide range of options.
2024
ROBI
Vertical Smart Automation. Robi aims to revolutionize the way industrial manufacturing challenges are faced.
